3 axles 45000L oil tanker truck, heavy oil tanker truck price
3000 units heavy oil tanker truck per month
China top professional heavy oil tanker truck manufacturer
State - approved heavy oil tanker truck enterprise, take credit as life
All of the heavy oil tanker truck are all can meet CE and DOT certificate
Email:barry(@)titanvehicle.com
Whatsapp(mobile):86 186 156 79 755
Skype:autumn.titan
Product Description
Product Specification : heavy oil tanker truck
| |
Tank Body
| |
Shape
| Round or Square |
Dimension
| 12000mm*2490mm*3990mm(The exact size depends on the final design) |
| Tare Wight | About 8000kg-128000kg |
| Total Volume(m³) | 25-60m3 |
| Tanker Body Material | 5mm or 6mm/Q235 carton steel |
| End Plate | 5mm or 6mm/Q235 carton steel |
| Manhole Cover | Carbon steel or aluminum alloy API manhole cover, 500mm(diameter) |
| Bottom Valve | Aluminum API Pneumatic Bottom Valve |
| Discharge Valve | Diameter is 3 or 4 inch |
| Compartments | Optional |
| Discharging Pipe | 4" rubber hose, 2pcs, 6m/each |
| Cat Walk | With (Common model or Special design) |
| Chassis | |
| Main Beams | Welded design or Special design I beam, connected by bolts and nutsq345 carton steel material |
| Axle | 2 or 3 axles, BPW/FUWA/HUAJING brand |
| Landing Gear | JOST (D200T) or China brand 28T |
| King Pin | JOST 2.00 or 3.5 inch bolt-in kingpin |
| Suspension | Mechanical suspension/Germany or America type/air suspension |
| Leaf Spring | 90(w)mm*13(Thickness)mm*10layers or 10mm*12mm*12 without |
| Pneumatic Braking System | WABCO RE 6 raly valve; Spring brake chamber (TKL brand); one piece of 45L air tank |
| Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
| Tire | 12.00R22.5/11.00R20/12.00R20 Brand can be Optional |
| ABS | Optional |
| Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and layers of top coast. |
| Accessories | One standard tool box |
| Shipping Terms | By bulk cargo, RORO, or 40HQ Container |

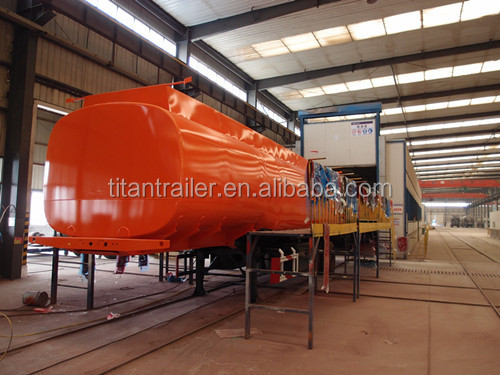

heavy oil tanker truck show
High quality Q235Material, Min steel plate thichness :6mm
Welding by one side in shape by two sides: Clean and beautiful seam on both sides, welding joint are good quality without splashing
Working scene of the tanker curling machinery
Tank body automatic welding equipment
Painting : Rust removing _ Sand blasting _ two layer of uprimer painting _ two layer of topcoat painting_Roast painting.
All the parts are standard for heavy oil tanker truck , you can get it from your location. easy maintain and durable service life.
